The sensor measures the equipment performance by monitoring temperature, vibration, magnetic field, noise, etc. It sends the data to a server/cloud. Each data has a time stamp. The sensor may do some local analysis.

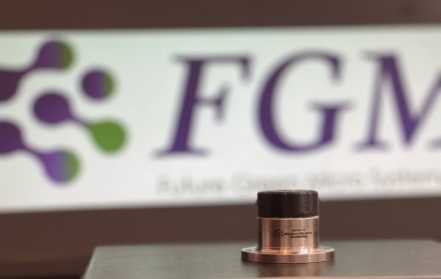

Atom sensor

Single-axis Vibration, Temperature Sensor

custom sampling strategies (Sampling time can be changed remotely)

Remote battery capacity report

Up to 1GB Based on order

Rechargeable battery with the battery life of 1 year with 1 hour sampling period

Magnetic, adhesive or M6 stud base

Physical Size: Ф375mm x h50mm

Ambient Operating Temperature: -20°C to +70°C

Maximum Equipment Surface Temp: 100°C

Protocol: WiFi: 802.11 b/g/n/e/i

Frequency Range: 2.4 GHz and 5GHz

Range: Up to 50m (without repeater) in high noise environment

Fmax= 1kHz

Max Acceleration Measurement= +/- 20g

FFT Frequency Resolution= 0.0625 for 500Hz Fmax, 0.625Hz for 5kHz Fmax

Resolution= 1°C

Range= -20°C to 120°C

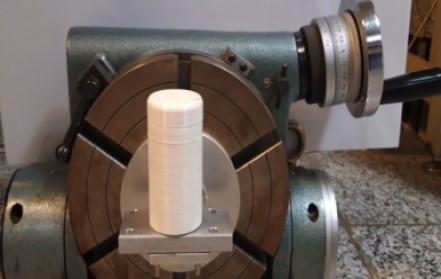

Bullet sensor

Tri-axial Vibration sensor, Temperature sensor

custom sampling strategies (Sampling time can be changed remotely)

Remote battery capacity report

Up to 1GB Based on order

Rechargeable battery with the battery life of 1 year with 1 hour sampling period

Magnetic, adhesive or M6 stud base

Physical Size: Ф60mm x h75mm

Ambient Operating Temperature: -20°C to +70°C

Maximum Equipment Surface Temp: 100°C

Protocol: WiFi: 802.11 b/g/n/e/i

Frequency Range: 2.4 GHz and 5GHz

Range: Up to 50m (without repeater) in high noise environment

Sim card & BLE5 optional

Antenna: Integrated

Fmax= 10kHz for X&Y&Z axes

Max Acceleration Measurement= +/- 25g

FFT Frequency Resolution= 0.0625 for 500Hz Fmax, 0.625Hz for 5kHz Fmax

IR Resolution= 0.5°C

Range= -40°C to 120°C

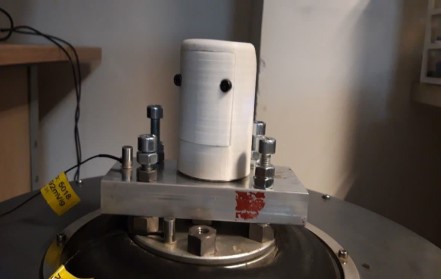

Bullet plus

Tri-axial Vibration, Temperature, Humidity, RPM, Magnetic Flux

custom sampling strategies (Sampling time can be changed remotely)

Remote battery capacity report

Up to 1GB Based on order

Rechargeable battery with the battery life of 1 year with 1 hour sampling period

Magnetic, adhesive or M6 stud base

Physical Size: Ф60mm x h75mm

Ambient Operating Temperature: -20°C to +70°C

Maximum Equipment Surface Temp: 100°C

Protocol: WiFi: 802.11 b/g/n/e/i

Frequency Range: 2.4 GHz and 5GHz

Range: Up to 50m (without repeater) in high noise environment

Sim card & BLE5 optional

Antenna: Integrated

Fmax= 10kHz for X&Y&Z axes

Max Acceleration Measurement= +/- 25g

FFT Frequency Resolution= 0.0625 for 500Hz Fmax, 0.625Hz for 5kHz Fmax

IR Resolution= 0.5°C

Range= -40°C to 120°C

Hall Sensor (Magn Flux) 10 RPM through 5000RPM with

99.9% accuracy or Virtual RPM Sensor 600 – 20,000RPM with >85% accuracy

Range= Adjustable +/-2 Gauss to +/-200 Gauss

Sensitivity 0.0002 Gauss to 0.02 Gauss

Sampling Rate 113kHz

Fmax output 667Hz

Range (Relative Humidity ) ± 3.5% RH, 20 to +80% RH

Accuracy (LSB) 0.004% RH/LSB
